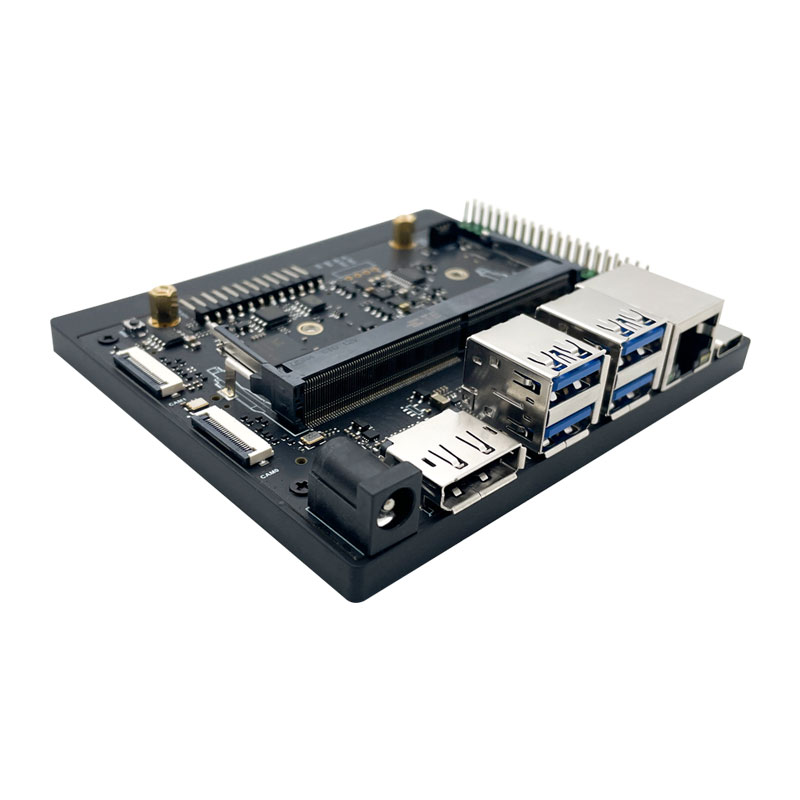

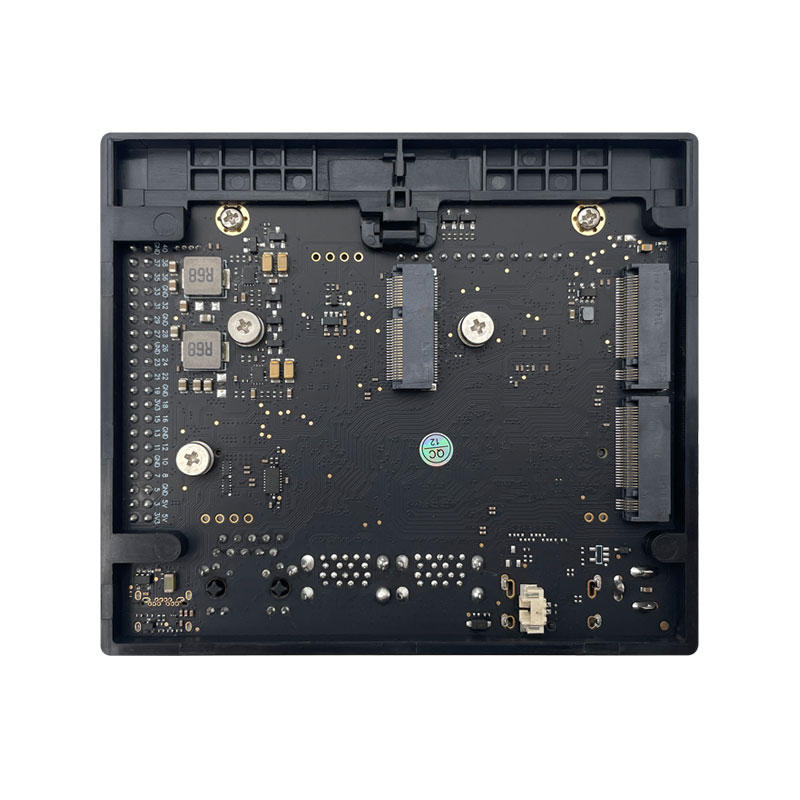

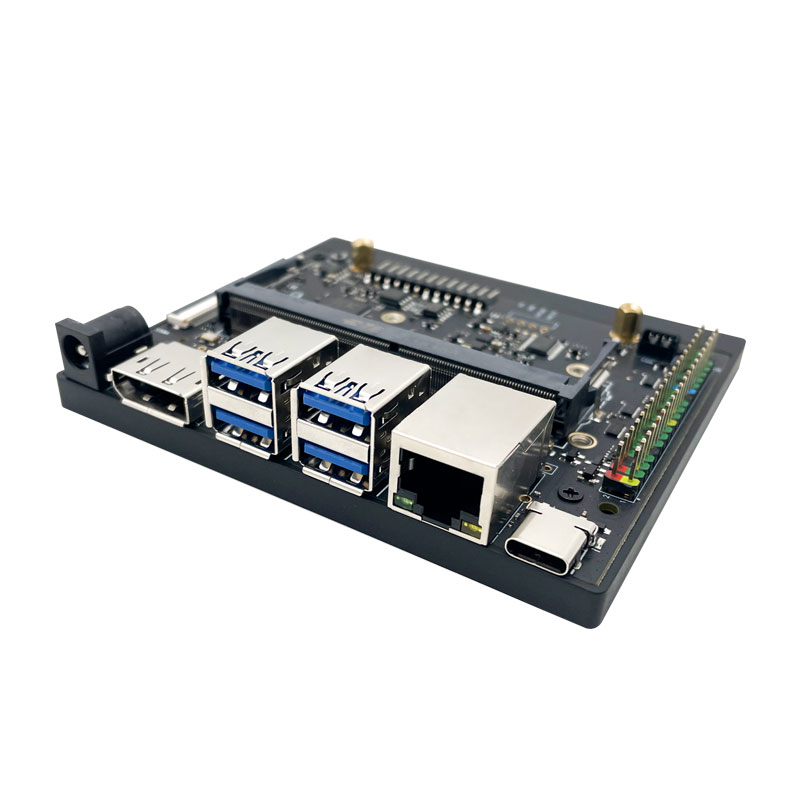

Orin NX/Orin Nano 国产开发板
Orin NX/Orin Nano 国产开发板是基于NVIDIA Jetson Orin NX/Orin Nano 核心模组设计，提供 M.2、 HDMI、USB 等更多丰富的接口，NVIDIA Jetson Orin Nano 核心模组有 4GB/8GB 显存版本可选，NVIDIA Jetson Orin NX 核心模组则有 8GB/16GB 显存版本可选可提供高达 20 TOPS/40 TOPS/70 TOPS/100 TOPS的 AI 性能，方便用户更好地发挥产品性能.
|
USB 3.2 Type-A |
4 |
|
Type-C |
1 |
| RJ45 | 1 |
|
M.2 E key |
1 |
|
M.2 M key |
1 |
|
CSI camera |
2x MIPI CSI-2 |
|
DisplayPort |
1 |
NVIDIA Jetson Orin NX与NVIDIA Jetson Orin Nano模组的对比
|
|
Jetson Orin NX 16GB |
Jetson Orin NX 8GB |
Jetson Orin Nano 8GB |
Jetson Orin Nano 4GB |
|
AI Performance |
157 TOPS |
117 TOPS |
67 TOPS |
34 TOPS |
| GPU |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores |
||
| CPU |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU2MB L2 + 4MB L3 |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU1.5MB L2 + 4MB L3 |
||
| Memory |
16GB 128-bit LPDDR5 102.4GB/s |
8GB 128-bit LPDDR5 102.4GB/s |
8GB 128-bit LPDDR5 68 GB/s |
4GB 64-bit LPDDR5 34 GB/s |
|
Storage |
- (Supports external NVMe) |
|||
|
Video Encode |
1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
1080p30 supported by 1-2 CPU cores |
||
|
Video Decode |
1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
||
|
CSI Camera |
Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
||
|
PCIe |
1 x4 + 3 x1 (PCIe Gen4, Root Port, & Endpoint) |
1 x4 + 3 x1 (PCIe Gen3, Root Port, & Endpoint) |
||
| USB |
3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0 |
3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0 |
||
|
Networking |
1x GbE |
|||
| Display |
1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 |
1x 4K30 multi-mode DP 1.2 (+MST)/eDP 1.4/HDMI 1.4** |
||
| Other I/O |
3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs |
3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs |
||
| PowerPower |
10W - 25W |
10W - 20W |
7W - 15W |
7W - 10W |
|
Mechanical |
69.6mm x 45mm 260-pin SO-DIMM connector |
|||
